Optical Fiber Fusion Splicing Optical Fusion Splicer With Mobile
Phone App

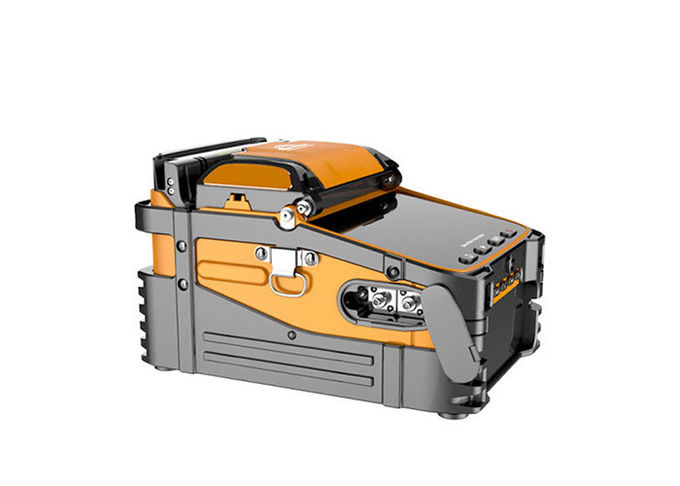

Sinohone HY-11 is the latest model from the line of optical fiber
splicers, which has been successfully used in fiber optic
installations of various projects for years.
Features
Thanks to the fine-tuning of the software and an even better
optimization of the splicing process, the entire process has been
shortened to just 5 seconds. However, the most important feature of
the new model is the built-in optical power meter module and visual fault locator(VFL). This new feature allows for quick diagnostics of the optical path
immediately after making a splice.
The core parts are using imported brands, aviation metal body
material with exquisite details.
With the combination of advanced technology and design, the new
generation of optical fiber fusion splicer will bring you a
reliable and handy help.
| Red Light Source | Power: 15mW, 2Hz blinking and constant light mode |
Dynamometer
| Wavelength: 850nm; 1300nm, 1310nm, 1490nm, 1550nm, 1625nm Measuring range: -70~+6dBm Absolute error: <0.3dB (-50dBm~+3dBm) |
Performance
* 6 motors for fiber positioning,
* core alignment or cladding alignment options,
* AUTO mode option,
* x300 magnification factor,
* quad-core processor providing fast response times,
* splicing time from 5 seconds,
* quick sleeve heating period (15 s for 40 mm sleeve),
* configuration with dedicated smartphone app (Android/iOS),
* the app can create operation reports (export to xls),
* large (5.1'') display with adjustable brightness,
* metal casing underneath covered with rubber layer,
* high-capacity exchangeable battery (7800 mAh, ca. 200 splicing
and heating operations),
* battery charging time: ca 3.5 h,
* USB adapter for smartphone charging,
* universal fiber holders,
* high quality practical toolbox,
* large set of accessories.
