Optical Fiber Fusion Splicer

Ask Lasest Price
Brand Name :	SINOHONE
Model Number :	HY-11
Certification :	RoHS / UL / CE / CPR / ISO9001
Price :	USD $850~$899 / meter
Payment Terms :	L/C, T/T, Western Union, MoneyGram, D/A
Supply Ability :	100 pieces per week
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

Optical Fiber Fusion Splicer

Optical Fiber Fusion Splicer

Description

Sinohone's HY-9S uses the latest core alignment technology with auto focus and six motors new generation of fiber fusion splicer.

5 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines. Under the conditions of rigorous testing. The design of operating platform reflects the humanistic care; unique lighting design, it is convenient for night construction or repair. Screen brightness is adjustable and it is convenient for outdoor sunshine environment operation. The core parts are using imported brands, aviation metal body material with exquisite details. With the combination of advanced technology and design, the new generation of optical fiber fusion splicer will bring you a reliable and comfortable user experience.

Features

6 seconds splicing
15 seconds heating
6 motors auto core alignment
1s boot without cache in device
suitable for SM / MM, bare fiber, pigtail, rubber-insulated, multi fiber cable
10 languages for operating
App connection for instructions and clound service.

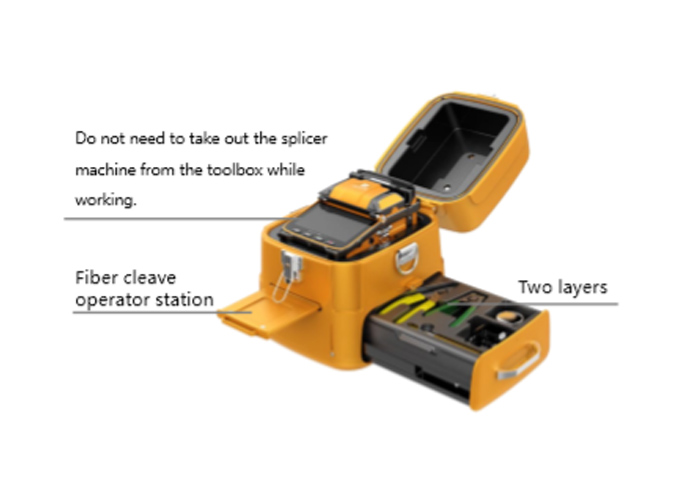

unique design with stool to facilitate construction workers.
USB for light and phone charge also available.

Application

Sinohone HY-11 is a new generation of splicing machine, which is fully qualified with trunk construction of medium and short distance, FTTH projects, security monitoring and other fiber cable splicing projects.

Specifications

Applicable fiber	SM(G.652&G.657),MM(G.651),DS(G.657),NZDS(G.655)
Splice loss	0.025dB(SM),0.01dB(MM)0.04dB(DS/NZDS)
Focusing method	Six motor autofocus
Fiber alignment	Core / cladding alignment, manual alignment
Welding time	6 seconds
heating time	15 seconds
Control technology	Real-time control and correction of welding ARC
Return loss	Better than 60dB
Fiber diameter	Cladding diameter 80-150μm, coating layer diameter 100-1000μm
Fiber cleave length	Coating less than 250μm: 8-16mm; coating less than 250-1000μm: 16mm
Thermal casing	60mm,40mm
Language setting	English, Chinese, French, Russian, Italian, Portuguese, Polish, Espanish, Thai, Arabic
Tensile test	Standard 2N
Fiber optic fixture	suitable for SM / MM, bare fiber, pigtail, rubber-insulated, multi fiber cable
Magnification	300 times (X axis or Y axis); 150 times (X axis Y axis synchronization)
Screen	5 inch TFT color display
Software upgrade	Mobile phone App update, turn on Bluetooth synchronization to the machine
Splice mode	Normal / high precision welding
Splice record storage	Sync to mobile App, unlimited cloud storage on server
Built-in battery	7800 mAh large-capacity lithium battery charging time ≤3.5
	continuous welding, heating about 240 cores
Power supply	Input AC100-240V 50 / 60HZ, output DC13.5V / 4.8A, the current power mode can be identified, and the current battery power can be
	monitored in real time
Working environment	Temperature: -15 ～ + 50 ℃, temperature: <95% RH (no condensation)
	working altitude: 0 ～ 5000m, maximum wind speed resistance: ≤15m / s
Flashlight	External LED lights
Shrinkable tube	60nm, 40nm
