Description:

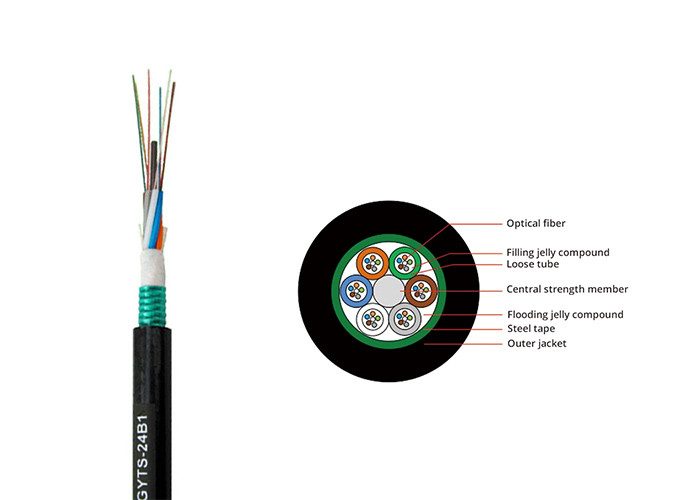

Sinohone GYTS Fiber Optical Cable 250μm fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.

Features

• Up to 144 fiber cores.
• The loose tube stranding technology make the fibers have good secondary excess length and allow
• The fibers free movement in the tube, which keeps the fiber stress-free while the cable is subjected to longitudinal stress.
• Corrugated steel tape armored and PE outer sheath providing property crush resistance and gun shot resistance features.
• Metal strength member provides excellent strain performance.

• Adopted to Outdoor distribution.
• Suitable for aerial .pipeline laying method.
• Long distance and local area network communication.

Technical Parameters:

Note:

• D refers to the cable diameter;
• The relevant technical Parameters can be adjusted according to the customer’s demands;
• The block water way can be adjusted according to the customer’ demands;
• To design flame resistance, anti-rodent, termite resistant cable according to customer’s demands.
