FTTH Backbone GYXTW Outdoor Fiber Optic Cable

Description:

Sinohone GYTXW fiber optic cable is an outdoor use optical fiber cable suitable for duct and aerial applications. We supply GYXTW from 2 fiber cores to 24 fiber cores. Both single mode type and multimode types are available.

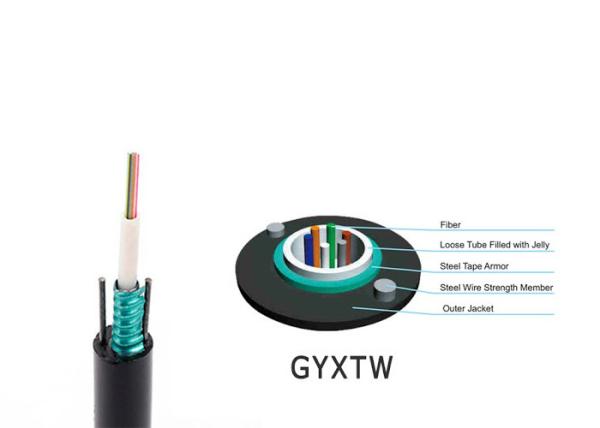

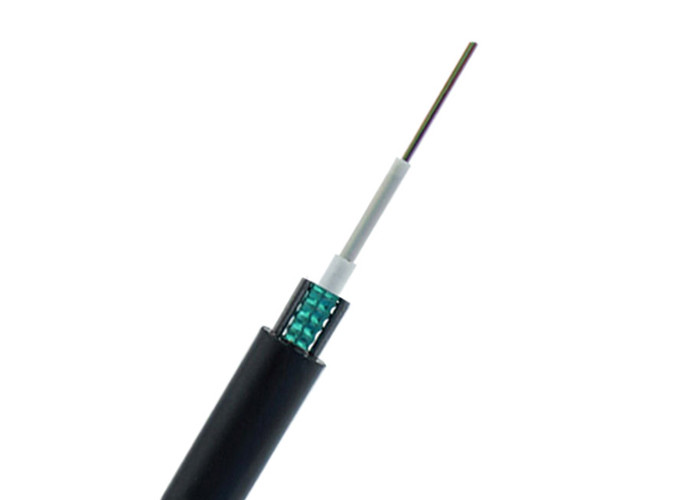

Fiber optic cable GYXTW, 2~12 fibers, jelly filled and fiber contained central loose tube, copolymer coated steel tape, two parallel steel wires 1.2mm, PE outer sheath, G652D SM fiber, detailed specification on your request.

Applications

These central loose tube optical fiber ribbon cables are suitable for installation in aerial or duct environment for communication between

• bureaus
• metropolitan network
• access network
• especially suitable for the situation where high-density fibers is expected


Features

• Up to 24 fiber cores.
• Low dispersion and attenuation
• Proper design, precise control for fiber excess length and distant stranding process render the cable excellent mechanical and environmental properties
• Double jacket structure makes cable nice properties of moisture resistance and crush resistance
• With small cable diameter, light cable weight, easily to lay
• The loose tube is centrally situated with good excess length and minimizes the influence of lateral crush.
• Double wire as strength member provides excellent strain performance.
• Operating temperature: -40 ~ +60 ℃
