Long Span Self Supporting Outdoor Single Mode ADSS Aerial Fiber Optic Cable

Description

All-dielectric self-supporting (ADSS) cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements. It is used by electrical utility companies as a communications medium, installed along existing overhead transmission lines and often sharing the same support structures as the electrical conductors.ADSS is an alternative to OPGW and OPAC with lower installation cost. The cables are designed to be strong enough to allow lengths of up to 700 metres to be installed between support towers. ADSS cable is designed to be lightweight and small in diameter to reduce the load on tower structures due to cable weight, wind, and ice.

Characteristics

1. Can be installed without shutting off the power
2. Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV
3. Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
4. Large span lengths and the largest span is over 1000m
5. Good performance of tensile strength and temperature
6. The design life span is 30 years
7. Working temperature: -40°C ~ +70°C

Standards

Comply with Standard YD/T 901 as well as IEC 60794-1.
Tempeature: Operating /Storage:-40°c +70°c

Paramenters

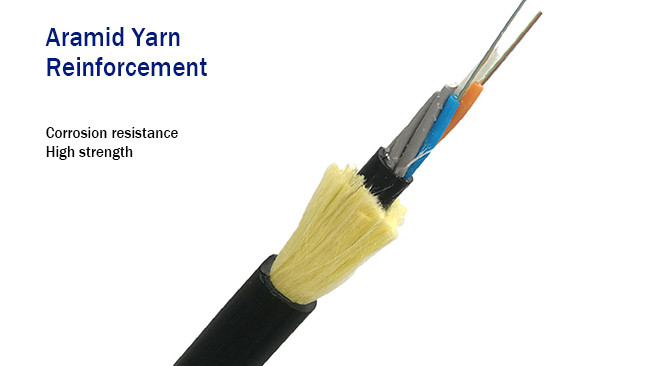

Cable Structure
