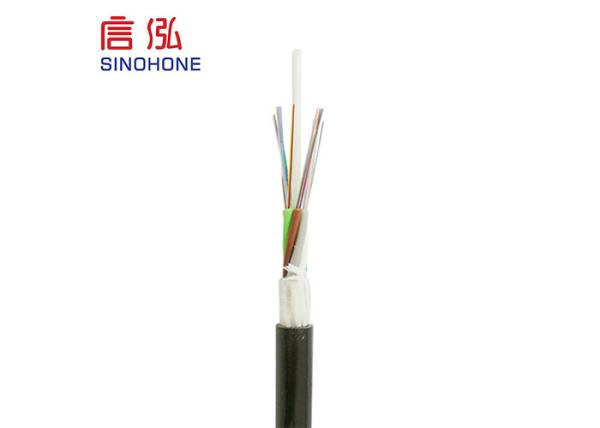

Item

Parameters

Loose tube

Material

PBT

Color

All colors display

Filler

Material

PE

Color

Black

CSM

Material

FRP

Inner armoured

Material

Plastic coated aluminum strip

Inner jacket

Material

MDPE

Color

Black

Outer armoured

Material

Plastic coated steel strip

Outer jacket

Material

MDPE

Color

Black

Min. bending radius

Static

12.5 times cable diameter

Dynamic

25 times cable diameter

Repeating bending

Load:250N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage.

Tensile performance

Short term

3000N

Crush

Short term

3000N/100mm

Torsion

Load:250N; number of cycles:10; twist angle:±180° No obvious addition attenuation, no fiber break and no cable damage.

Fiber count

Structure

Fibers per tube

Loose tube diameter(mm)

CSM diameter/pad diameter(mm)

Thickness of Inner jacket(mm)

Thickness of outer jacket(mm)

Cable diameter(mm)

Cable Weight(kg/km)

4

1+6

4

2.2±0.1

2.6/2.6

0.9±0.1

1.6±0.1

14.4 ±0.5

191

6

1+6

6

2.2±0.1

2.6/2.6

0.9±0.1

1.6±0.1

14.4 ±0.5

191

8

1+6

4

2.2±0.1

2.6/2.6

0.9±0.1

1.6±0.1

14.4 ±0.5

191

12

1+6

6

2.2±0.1

2.6/2.6

0.9±0.1

1.6±0.1

14.4 ±0.5

192

18

1+6

6

2.2±0.1

2.6/2.6

0.9±0.1

1.6±0.1

14.4 ±0.5

192

24

1+6

6

2.2±0.1

2.6/2.6

0.9±0.1

1.6±0.1

14.4 ±0.5

192

30

1+6

6

2.2±0.1

2.6/2.6

0.9±0.1

1.6±0.1

14.4 ±0.5

192

36

1+6

6

2.2±0.1

2.6/2.6

0.9±0.1

1.6±0.1

14.4 ±0.5

192

48

1+6

12

2.5±0.1

2.6/2.6

0.9±0.1

1.6±0.1

15.0 ±0.5

205

60

1+6

12

2.5±0.1

2.6/2.6

0.9±0.1

1.6±0.1

15.0 ±0.5

207

72

1+6

12

2.5±0.1

2.6/2.6

0.9±0.1

1.6±0.1

15.0 ±0.5

208

84

1+7

12

2.5±0.1

2.6/3.5

0.9±0.1

1.6±0.1

15.9 ±0.5

231

96

1+8

12

2.5±0.1

3.0/4.3

0.9±0.1

1.6±0.1

16.8 ±0.5

257

108

1+9

12

2.5±0.1

3.0/5.1

0.9±0.1

1.6±0.1

17.6 ±0.5

279

120

1+10

12

2.5±0.1

3.0/5.9

0.9±0.1

1.6±0.1

18.4 ±0.5

303

132

1+11

12

2.5±0.1

3.0/6.6

0.9±0.1

1.6±0.1

19.1 ±0.5

324

144

1+12

12

2.5±0.1

3.0/7.5

0.9±0.1

1.6±0.1

20.0 ±0.5

353
