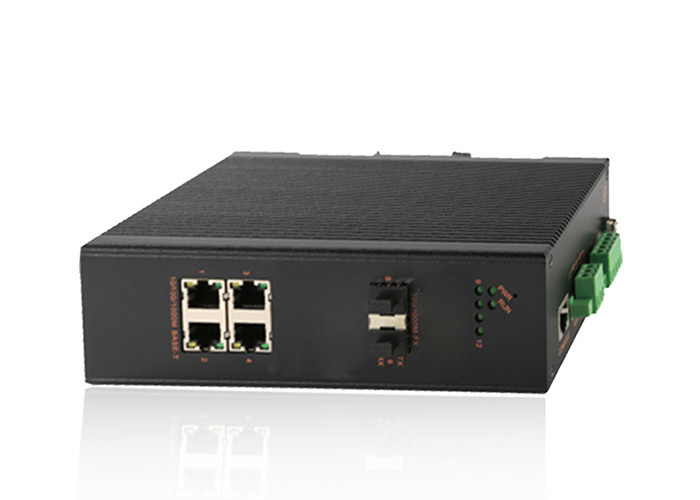

    Corrugated Housing Gigabit Fiber Optic Network Switch With 4 RJ45 2 SFP For Outdoor

    Ask Lasest Price
    Brand Name : SINOHONE
    Model Number : HY-624I
    Certification : CE RoHS CPR FCC ISO9001
    Price : USD 110-115/piece
    Payment Terms : L/C, T/T, MoneyGram, Western Union
    Supply Ability : 50000 pieces per month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Corrugated Housing Gigabit Fiber Optic Network Switch With 4 RJ45 2 SFP For Outdoor


    Corrugated Housing Gigabit Fiber Optic Network Switch with 4 RJ45 2 SFP for Outdoor


    Industrial Ethernet Switches - Managed Series


    Sinohone's HY-624I is a reliable IP40 managed DIN-rail switch with hardened components rated for extreme industrial enviroments. It offers 4 Gigabit ethernet ports and 2 Gigabit SFP ports, total 53 Gbps switching capacity and 8.9Mpps packet forwarding rate. Dual redundant power inputs with overload current protection support zero downtime applications.


    EMC industrial grade 4 protection performance. Effectively resist static, lightning strikes and pulse interference. Corrugated high-strength aluminum profile housing. IP40 protection, Low power design, seismic rail mounting, Wide temperature -40 ° C -80 ° C. Designed to work in harsh environments


    Features


    • 4 x Gigabit Ethernet ports and 2 x Gigabit SFP ports
    • 53 Gbps switching capacity
    • 8.9Mpps forwarding rate
    • Hardened IP40 rated metal switch
    • Includes DIN-rail and wall mounts
    • Extreme -40 to 85° C operating temperature range
    • Dual redundant power inputs with overload current protection
    • Lifetime Sinohone Manufacturer's Warranty

    Applications:


    • Coal Mine Safety
    • Power Industry
    • Transportation Industry
    • Laboratory
    • Smart Traffic
    • Factory Automation
    • Smart City
    • Oil & Gas
    • Materials and Mining

    Specification


    ModelHY-624I
    Number of interfaces

    Electric port: 10/100/1000M 4-RJ45,

    SFP port: 1000M 2-SFP

    Installation methodDIN rail mounting
    Item Weight2.1kg
    Product Dimension182*122*54mm
    power supplyDual power supply, DC12V-57V dual power supply,
    Power and power supplyNo fan, low power consumption, the total power consumption of the device itself is less than 30W
    AC input: default 220V: 100V ~ 260V
    Working temperatureIndustrial grade: (-40 ° C ~ 85 ° C)
    Storage ambient temperature-40°C~85°C

    Why industrial ethernet switch


    Industrial switch, also known as Industrial Ethernet Switch, which is an Ethernet switch device used in industrial control. Due to the adopted network standard, it is widely used and inexpensive. It uses a transparent and unified TCP/IP protocol.


    There is no essential difference between the data network layer and the network layer, or the protocol layer. However, for the real-time requirements of industrial control, industrial ethernet switch solves the real-time communication, network security, intrinsic safety and security explosion-proof.


    Technical proplem such as technology, and adopts some measures suitable for industrial environment, such as waterproof, anti-vibration. The core is not essentially different from commercial Ethernet, which is the same as the difference between PC and industrial computer.
