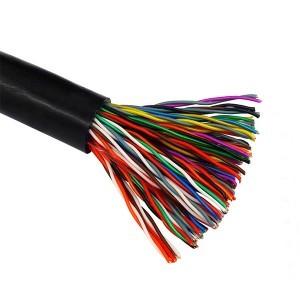

CAT3 Bulk Network Cable Telephone Outdoor 2/5/20 Pair Waterproof

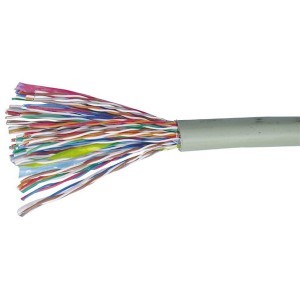

CAT3 Bulk Network Cable Telephone Outdoor 2/5/20 Pair Waterproof

Sinohone CAT3 bulk network cable complies with the ROHS standards, and have many kinds of sheath according to the environmental demands. It also has special design for trunk voice transmission and clear labels to be convenient for fixing.

Physical and Electrical Characteristics

Impedance	1-16MHz 100±15Ω
Max. Mutual Capacitance	6.6nF/100m
Max. Unbalanced DC resistance	2.5%
Max. Differential phase delay	45nF/100m
Permitted bend radius	10 times diameter of the cable
Fixing temperature	0~+55°C
Operating temperature	-20°C~+60°C
Max. Tension	80N
Min. Dielectric Strength Between Conductors	1.0kV/min
Applications	10Base-T,10Base-T4
Standards	ISO/IEC11801,ANSI/TIA/EIA-568-B(International standards: ISO/IEC11801,ANSI/TIA/EIA-568-B)

Features of Product

Comply with the ROHS Standards;
Many kinds of sheath can be designed according to the environmental demands;
Special design for trunk voice transmission;
Clear labels be convenient for fixing.

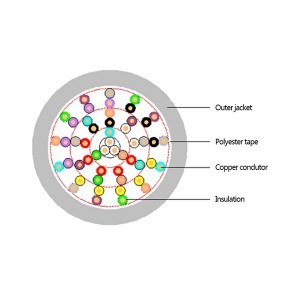

Parameters:

structure	conduct diameter (mm)	single pure copper	Diameter of Single Copper Wire	Insulated diameter (mm)	(HDPE)	Diameter of Insulated Wire
structure	conduct diameter (mm)	single pure copper	Diameter of Single Copper Wire	Insulated diameter (mm)	(HDPE)	Diameter of Insulated Wire
UTP	0.4/0.48	0.7/.86	25	(Naught)	PE/PVC/LSZH	9.6±1.0
UTP	0.4/0.48	0.7/.86	50	(Naught)		14.4±1.0
UTP	0.4/0.48	0.7/.86	100	(Naught)		18.6±1.0

Notes: PE- Polyethylene; PVC- Polyvinyl chloride; LSZH-Low Smoke Zero Halogen; Grades of PVC Fire Resistance CMX,CM,CMR and CMP

Transmission Performance

Frequency	IL-Max	NEXT-Min	PSNEXT-Min	ELFEXT-Min	RL-Min
(MHz)	(dB/100m)	(dB/100m)	(dB/100m)	(dB/100m)	(dB)
1	2.6	41	41	39	12
4	5.6	32	32	27	12
10	9.7	26	26	19	12
16	13.1	23	23	15	10
