10 Gigabit Fiber Optic Network Switch Sliding Fixed Type 8 X 10/100/1000

Gigabit Ethernet Industrial Switch 8 x 10/100/1000 Industrial Network Switch

HY-624 simplifies the complex protocol overhead of PTN and provides the OAM capability of the service layer, which makes the design and implementation of the access network more general.

It is our industrial grade switch, which can be powered by POE and can be used as a PTN remote device. The product provides high-speed Ethernet service access and supports Ethernet standard protocols.Its ability to connect with PTN, simplify the operation interface, make the network maintenance means effective and unified, and help to achieve efficient network management.

Characteristics:

Item	HY-624I
Number of interfaces	Gigabit SFP ports (or specify other optical port forms):2 Gigabit ports RJ45:4
Exchange capacity	53G
Mpps	8.9Mpps
POE power supply	Nonsupport
PTN ring network	Support PTN industrial ring network technology, using ERPS protocol, STP protocol
VLAN	Support 4K VLAN, VLAN conversion function, VLAN based on port, MAC, protocol, IP address and QinQ
MAC	8K MAC address table, support MAC address table dynamic automatic learning and static configuration
QOS	Support 8 level QOS queue, support SP, WRR queue scheduling policy
ACL	The number of ACL entries can be supported to 256
Power and power supply	No fan, low power consumption, the total power consumption of the equipment is less than 15W Industrial grade supports dc or ac power (dc parameters: default -48v: -36v ~ -72v, ac parameters: default 220V: 100V ~ 260V)
Other features	Port convergence /LACP supported, support 1:1 port protection Support interport protection based on the LACP protocol, linear protection based on the G.8031 protocol and ring network protection based on the G.8032 protocol Support port redirection and port mirror function, support port-based failover capabilities Support MSTP/RSTP protocol Support fiber breakage alarm;Support power failure warning of Dying Gasp remote device Support equipment online upgrade Support storm suppression and port speed limit, speed limit granules up to 64K Support SLA, Link performance tests such as link delay, jitter, packet loss and throughput can be implemented Support port-based, 802.1p, DSCP, TOS, MAC address, VLAN ID, Ethernet Type
Operating Temperature	Industrial grade: (-40 ° C~ 80 ° C)
Storage temperature	-40°C～85°C

Qualcomm has strong advantages in mobile chips, wireless connectivity and baseband, as well as patent reserves, especially in 3G and 4G.

Qualcomm has more than 3,900 patents in CDMA technology.

Last year, Qualcomm's Snapdragon 820 processor was excellent and was widely adopted by 115+ flagship terminals. Qualcomm is also very strong on LTE connectivity.

10 Gigabit Fiber Optic Network Switch Sliding Fixed Type 8 X 10/100/1000

Application

Local Area Network
CATV System
Telecommunication Networks
Equipment Test

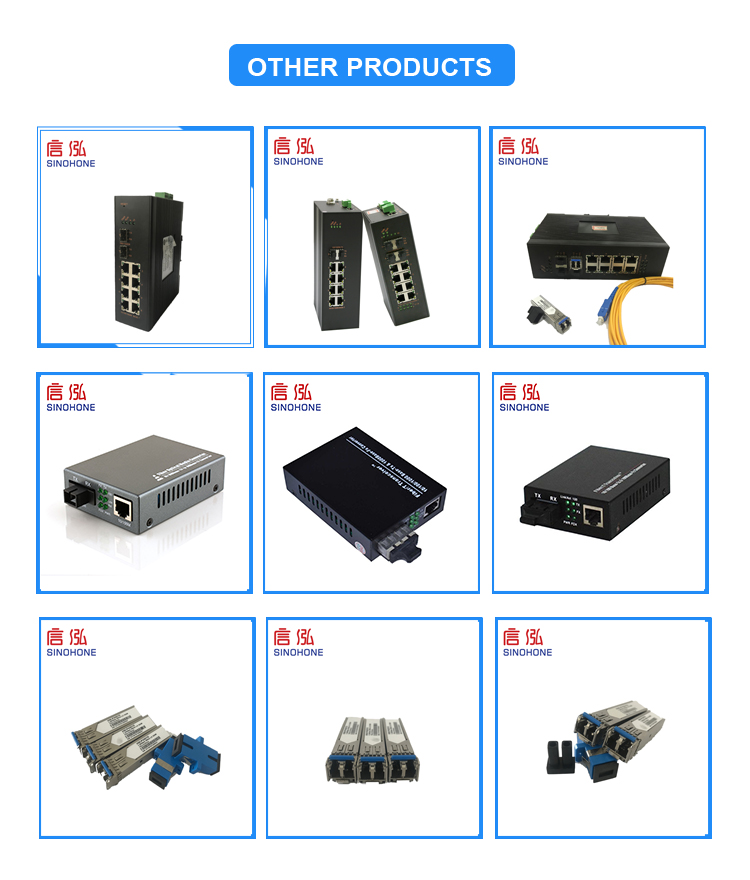

Other products
