10/100 Mbps POE Ethernet Switch , 30 W Optical Gigabit Ethernet Switch

Ask Lasest Price
Certification :	ROHS / UL /CE / CPR / ISO9001
Brand Name :	Sinohone
Model Number :	HY-648I, LC, SC, FC, ST Adapters
Supply Ability :	50000 Piece/Pieces per Month
Price :	$38~48.00 per pieces

Add to Cart

Product Details
Company Profile

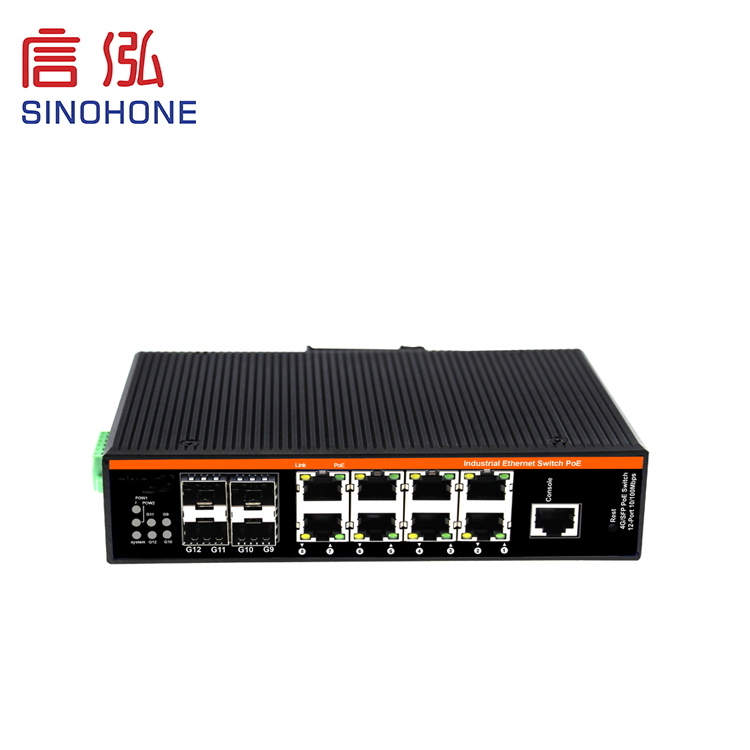

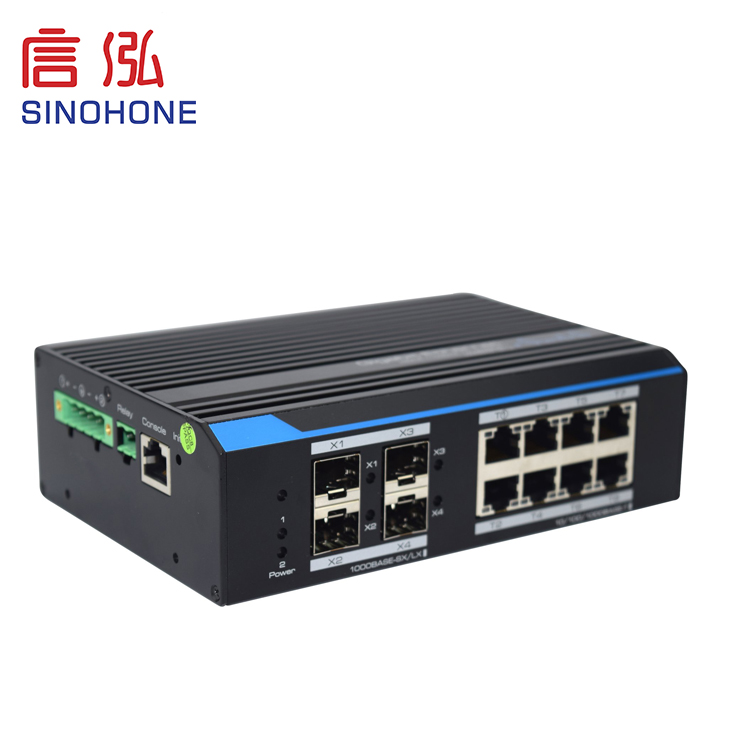

10/100 Mbps POE Ethernet Switch , 30 W Optical Gigabit Ethernet Switch

10/100 Mbps Each Port Industrial 8 Port Poe 30 W Ethernet Network Switch

HY-648PI provides high-speed Ethernet service access and supports Ethernet standard protocols. As one of our industrial grade switch, which can be powered by POE and can be used as a PTN remote device.

It has the ability to connect with PTN, simplify the operation interface, make the network maintenance means effective and unified, and help to achieve efficient network management. It simplifies the complex protocol overhead of PTN and provides the OAM capability of the service layer, which makes the design and implementation of the access network more general.

Application

Local Area Network
CATV System
Telecommunication Networks
Equipment Test

Product Description

Item	HY-648PI
Number of interfaces	Gigabit SFP ports (or specify other optical port forms):4 Gigabit ports (POE power supply):8
Exchange capacity	53G
Mpps	17.85Mpps
POE power supply	Support
PTN ring network	Support PTN industrial ring network technology, using ERPS protocol, STP protocol
VLAN	Support 4K VLAN, VLAN conversion function, VLAN based on port, MAC, protocol, IP address and QinQ
MAC	8K MAC address table, support MAC address table dynamic automatic learning and static configuration
QOS	Support 8 level QOS queue, support SP, WRR queue scheduling policy
ACL	The number of ACL entries can be supported to 256
Management	Support local Console serial port and TELNET command line management; Support SSH; Support SNMP, WEB management; Support the unified management through the EMS management system independently developed by our company; Support remote device software upgrade and backup through FTP and TFTP; Support RMON performance statistics for ports
Power and power supply	No fan, low power consumption, the total power consumption of the equipment is less than 10/15W Industrial grade supports dc or ac power (dc parameters: default -48v: -36v ~ -72v, ac parameters: default 220V: 100V ~ 260V)
Other features	Port convergence /LACP supported, support 1:1 port protection Support interport protection based on the LACP protocol, linear protection based on the G.8031 protocol and ring network protection based on the G.8032 protocol Support port redirection and port mirror function, support port-based failover capabilities Support MSTP/RSTP protocol Support fiber breakage alarm;Support power failure warning of Dying Gasp remote device Support equipment online upgrade Support storm suppression and port speed limit, speed limit granules up to 64K Support SLA, Link performance tests such as link delay, jitter, packet loss and throughput can be implemented Support port-based, 802.1p, DSCP, TOS, MAC address, VLAN ID, Ethernet Type
Operating Temperature	Industrial grade: (-40 ° C~ 80 ° C)
Storage temperature	-40°C～85°C

Characteristics

10/100 Mbps POE Ethernet Switch , 30 W Optical Gigabit Ethernet Switch

Fiber optic Patch Cord Characteristics:

1.Industrial design, 2x 10/100M Ethernet RJ45 ports with AutoUplink™ and 1x 100M SC optical port
2.Supports IEEE802.3x flow control for Full-duplex Mode and back pressure for Half-duplex Mode
3.RJ-45 port supports Auto MDI/MDI-X
4.Automatic MAC address learning and aging
5.Auto-Negotiation for Full-duplex Mode and Half-duplex Mode
6.Plug and play, with LED indicators for monitoring power/link/activity, easy to use.
7.Provides DIN35 rail-type installation method
8.Electromagnetic compatibility of up to 4 grade standard
9.IP40 protection class
10.Superior performance, successfully used in industrial field
11.Default PoE power supply type is end-span, mid-span optional
12.Power ports supports both IEEE802.3af and IEEE802.3at standard PoE power supply.

Certificates

10/100 Mbps POE Ethernet Switch , 30 W Optical Gigabit Ethernet Switch

Packaging & Shipping

10/100 Mbps POE Ethernet Switch , 30 W Optical Gigabit Ethernet Switch

FAQ

Sinohone-638 10/100mbps Each Port Industrial 4 optical port Network 8 Port Poe 30w Ethernet Network Switch

1.Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.

2.What is your warranty period?

25 years for fiber optic cable

3.Which kind of certification you have ?

CPR, ISO9001, UL, RoHs. CE

4.What is your delivery time?

Usually within 3-7 working days

5.What about your annual production capacity?

Outdoor/Indoor Fiber Optic Cable, our annual output is 10,000,000 KM;

FTTH/FTTX/FTTA Cable, it is 5,000,000 KM per year;

Patch Cord/Pigtails, it is 18,000,000 Pieces per year.

6.What is your payment way?

T/T, L/C, Western Union and Paypal.

7.Can you supply customized products and logo?

Yes. We supply OEM&ODM service. You can send us your drawing.
