Stable PTN Ring Network Secure System 2 Port Gigabit SFP Fiber Optic Network Switch

Description:

HY-628I is one of our new generation intelligent industrail management gigabit optic switch. It has 2 gigabit SFP port (or other specified port form) and 4 gigabit RJ45 ports.

It can be also used as PTN remote equipment, for its ablility to connect with PTN ring network and simplify the operation interface. It also makes the network maintannce methods effective and unfied and helps to achieve efficient network management.

Advantages:

1. It can be used as PTN remote equipment
2. Low power consumption without fan
3. This product can provide high-speed Ethernet service access and support Ethernet standard protocol.
4. It simplifies the complex protocol overhead of PTN and provides the OAM capability of service layer, which makes the design and implementation of access network more concise.
5. Its a device that enables optical signals to be selectively switched-on and -off or switched from one channel to another.
6. It's widely used in automation fields such as power, factory and rail transit.

Application:

1. Power Automation
2. Factory Automation
3. Rail Transit Automation
4. Spot Scenic Security
5. Expressway Monitoring

Product Name	Automatic Monitoring Network Switch
Model No.	HY-628I

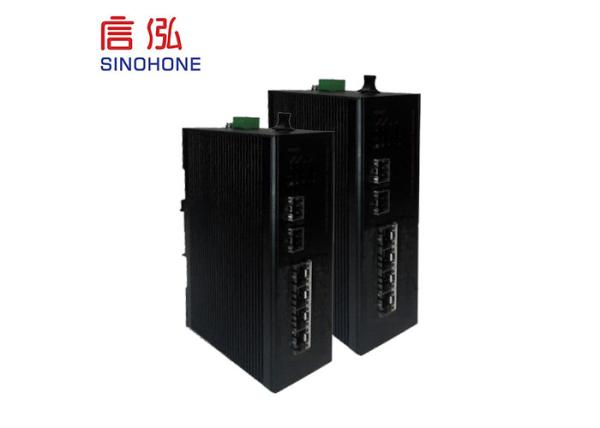

Sample Picture
Exchange capacity	53G
Mpps	17.85Mpps
Number of interference	Gigabit SFP ports (or specify other optical port forms): 2 Gigabit ports: 8
Management	Support
PTN	Support PTN ring network
Operating temperature	Industrial grade: (-40 ° C~ 80 ° C)
Storage temperature	-40°C～85°C
Management	Support local Console serial port and TELNET command line management; Support SSH; Support SNMP, WEB management; Support the unified management through the EMS management system independently developed by our company; Support remote device software upgrade and backup through FTP and TFTP; Support RMON performance statistics for ports
Features	Support 4K VLAN, VLAN conversion function, VLAN based on port, MAC, protocol, IP address and QinQ Support PTN industrial ring network technology, using ERPS protocol, STP protocol 8K MAC address table, support MAC address table dynamic automatic learning and static configuration The number of ACL entries can be supported to 256 53G exchange capacity 8 level QOS queue, support SP, WRR queue scheduling policy PTN ring network
Power and power supply	No fan, low power consumption, the total power consumption of the equipment is less than 10W Industrial grade supports dc or ac power (dc parameters: default -48v: -36v ~ -72v, ac parameters: default 220V:100V ~ 260V)

Other Application

• Building automatic control system
• Oilfielf control automation
• Hydropower station control automation
• Computer room monitoring system
• Water conservancy monitoring
• Environmental protection monitoring
• Metallurgical, petroleum and petrochemical, road traffic control automation

Packing and Delivery

Sichuan Hone Technology Co., Ltd. is specialized in information and communications network products. Our company is mainly engaged in Intelligen Switches, Industrail Switches, Optical Fiber Cables, LAN Cables and related accessories products etc.

We have rich experience in the optical communication industry and great capability of R&D, design and construction. All of our products have passed the ISO 9001 quality system certification, international ROHS, CE, CPR and FCC certification. Also, we accept OEM/ODM service, we are committed to cost-effective solutions to create new values for our partners.
