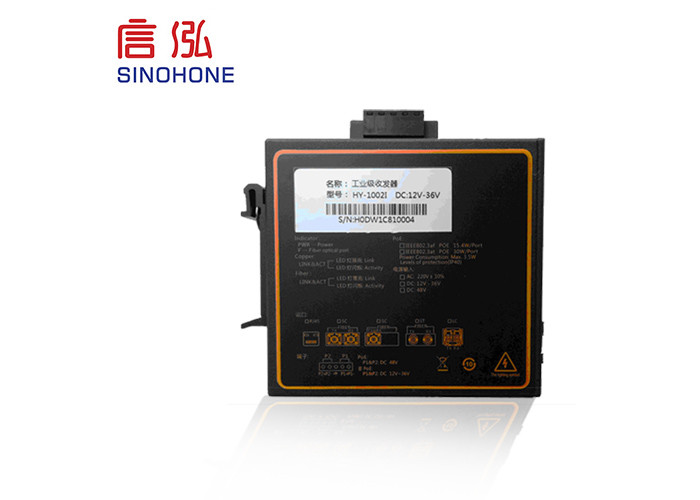

DC Power Fiber Optic Media Converter Industrial Ethernet Optical Transceiver

Ask Lasest Price
Brand Name :	Sinohone
Model Number :	HY-1002I
Certification :	CE FCC CPR ISO9001 RoHS
Price :	$38.00~58 per piece
Supply Ability :	50000 Piece/Pieces per Month

Add to Cart

Product Details
Company Profile

DC Power Fiber Optic Media Converter Industrial Ethernet Optical Transceiver

DC Power Industrial Ethernet Optical Transceiver Fiber Optic Media Converter

Description

Sinohone HY-1002I us an idustrial Ethernet optical transceiver, which meets the requirements of industrial level 4 EMC.

It has high integration, reliability and can adapt to harsh industrial environment. The birth of this converter makes the establishment of local area network easier and easier. And it can also connect the remote local area network through its own optica fiber interface.

Using HY-1002I to build up a network can greatly reduce network investment, simplify the network structure and make the network more stable and safer. Its widely applied in telecommunications, electric power, intelligent community, campus network, government website, cable TV, oil and mobile base station and other occasions.

Specifications

Item	Industrial Fiber Optic Media Converter
Number of interfaces	1000Base-FX (SM / MM SC/ST/FC/SFP)
Number of interfaces	100Base-Fx (SM / MM SC/ST/FC) 10/100Base-T(X) Self-adaptive ethernet RJ45
Exchange capacity	53G
Mpps	4.2Mpps
POE power supply	Support
Power Voltage	44-57V per POE port
Power Input	90 ~264VAC, 47~63Hz
Levels of protection	IP40
Model No.	HY-1002I
Installation	Guide Rail
Case	Metal case Without fan
Other features	Port convergence /LACP supported, support 1:1 port protection
	Support interport protection based on the LACP protocol, linear protection based on the G.8031 protocol and ring network protection based on the G.8032 protocol
	Support port redirection and port mirror function, support port-based failover capabilities
	Support MSTP/RSTP protocol
	Support fiber breakage alarm;Support power failure warning of Dying Gasp remote device
	Support equipment online upgrade
	Support storm suppression and port speed limit, speed limit granules up to 64K
	Support SLA, Link performance tests such as link delay, jitter, packet loss and throughput can be implemented
	Support port-based, 802.1p, DSCP, TOS, MAC address, VLAN ID, Ethernet Type
Operating Temperature	Industrial grade: (-40 ° C~ 80 ° C)
Storage Temperature	-40 ° C~ 85 ° C
Operating Humidity	5~95% (no frost)

Characteristics

Industrial design, 2x 10/100M Ethernet RJ45 ports with AutoUplink™ and 1x 100M SC optical port
Supports IEEE802.3x flow control for Full-duplex Mode and back pressure for Half-duplex Mode
RJ-45 port supports Auto MDI/MDI-X
Automatic MAC address learning and aging
Auto-Negotiation for Full-duplex Mode and Half-duplex Mode
Plug and play, with LED indicators for monitoring power/link/activity, easy to use.
Provides DIN35 rail-type installation method
Electromagnetic compatibility of up to 4 grade standard
IP40 protection class
Superior performance, successfully used in industrial field
Default PoE power supply type is end-span, mid-span optional
Power ports supports both IEEE802.3af and IEEE802.3at standard PoE power supply.

DC Power Fiber Optic Media Converter Industrial Ethernet Optical Transceiver
