Lightweight Self Supporting Aerial Cable , Duct Fiber Optic Cable

Ask Lasest Price
Brand Name :	SINOHONE
Model Number :	GYFTS
Certification :	CPR FCC CE RoHS ISO9001
Price :	USD $0.38~$0.58 / meter
Payment Terms :	L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :	500000 meters per month
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

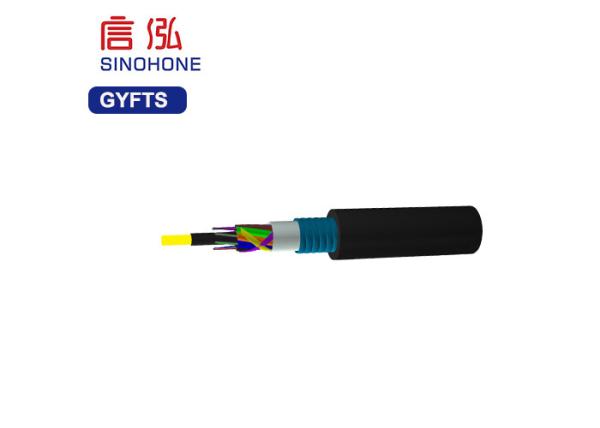

Lightweight Self Supporting Aerial Cable , Duct Fiber Optic Cable

Steel Polyethylene Sheathed Armored Fiber Optic Cable For Outdoor Communications

Quick Introduction:

Sinohone steel polyethylene outer sheath armored fiber optic cable has small diameter and lightweight, and anti-electromagnetism ability. It occupies little space and use steel tape. It also has low coefficient of attenuation and chromatic dispersion.

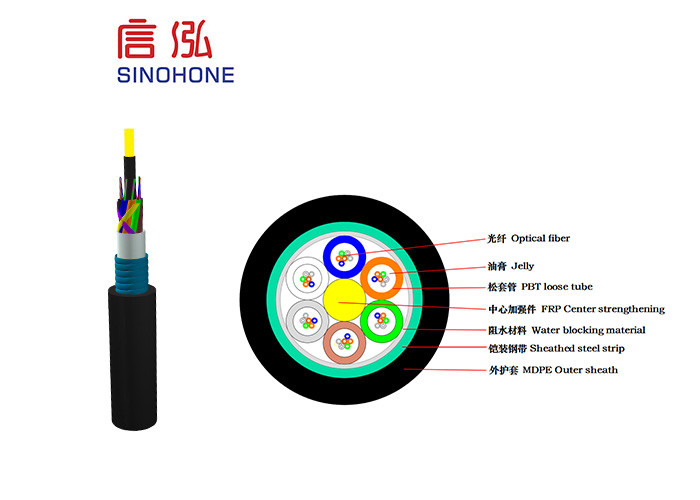

Sinohone Fiber Optic Cable GYFTs is an outdoor optical cable, it consists of optic fiber, PBT loose stranding tube, fulll-filled gel, water blocking materials, sheathed steel tape and HDPEclading optical cable.

Optical Characteristics

Attenuation	@850nm			≤3.0 dB/km	≤3.0 dB/km
(+20℃)	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

Technical Parameters

Cable Type	Fiber Count	Tubes	Fillers	Cable Diameter	Cable Weight kg/km	Tensile Strength	Crush Resistance
						Tensile Strength	Crush Resistance	Bending Radius
							Long/Short Term	Static/Dynamic
				mm		Long/Short Term N	N/100mm	mm
GYFTY-2~6	2~6	1	5	10.6	88	400/1000	300/1000	10D/20D
GYFTY-8~12	8~12	2	4	10.6	88	400/1000	300/1000	10D/20D
GYFTY-14~18	14~18	3	3	10.6	88	400/1000	300/1000	10D/20D
GYFTY -20~24	20~24	4	2	10.6	88	400/1000	300/1000	10D/20D
GYFTY-26~30	26~30	5	1	10.6	88	400/1000	300/1000	10D/20D
GYFTY-32~36	32~36	6	0	10.6	88	400/1000	300/1000	10D/20D
GYFTY-2~6	2~6	1	6	11	97	600/1500	300/1000	10D/20D
GYFTY-8~12	8~12	2	5	11	97	600/1500	300/1000	10D/20D
GYFTY-14~18	14~18	3	4	11	97	600/1500	300/1000	10D/20D
GYFTY-20~24	20~24	4	3	11	97	600/1500	300/1000	10D/20D
GYFTY-26~30	26~30	5	2	11	97	600/1500	300/1000	10D/20D
GYFTY-32~36	32~36	6	1	11	97	600/1500	300/1000	10D/20D
GYFTY-38~42	38~42	7	0	11	97	600/1500	300/1000	10D/20D
GYFTY-44~48	44~48	4	2	12	113	600/1500	300/1000	10D/20D
GYFTY-50~60	50~60	5	1	12	113	600/1500	300/1000	10D/20D
GYFTY-62~72	62~72	6	0	12	113	600/1500	300/1000	10D/20D
GYFTY-2~6	2~6	1	7	12	120	1000/3000	300/1000	10D/20D
GYFTY-8~12	8~12	2	6	12	120	1000/3000	300/1000	10D/20D
GYFTY-14~18	14~18	3	5	12	120	1000/3000	300/1000	10D/20D
GYFTY-20~24	20~24	4	4	12	120	1000/3000	300/1000	10D/20D
GYFTY-26~30	26~30	5	3	12	120	1000/3000	300/1000	10D/20D
GYFTY-32~36	32~36	6	2	12	120	1000/3000	300/1000	10D/20D
GYFTY-38~42	38~42	7	1	12	120	1000/3000	300/1000	10D/20D
GYFTY-44~48	44~48	8	0	12	120	1000/3000	300/1000	10D/20D
GYFTY-50~60	50~60	5	2	13	137	1000/3000	300/1000	10D/20D
GYFTY-62~72	62~72	6	1	13	137	1000/3000	300/1000	10D/20D
GYFTY-74~84	74~84	7	0	13	137	1000/3000	300/1000	10D/20D
GYFTY-86~96	86~96	8	0	13.9	154	1000/3000	300/1000	10D/20D
GYFTY-98~108	98~108	9	1	15.3	185	1000/3000	300/1000	10D/20D
GYFTY-110~120	110~120	10	0	15.3	185	1000/3000	300/1000	10D/20

Lightweight Self Supporting Aerial Cable , Duct Fiber Optic Cable
