PVC LSZH Material Fiber Optic Patch Cord , SC Multimode Fiber Cable

Ask Lasest Price
Brand Name :	SINOHONE
Model Number :	SC
Certification :	CPR FCC CE RoHS ISO9001
Price :	USD $0.38~$0.58 / meter
Payment Terms :	L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :	50000 pieces per month
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

PVC LSZH Material Fiber Optic Patch Cord , SC Multimode Fiber Cable

PVC LSZH Material SC Fiber Optic Patch Cord Single Mode Multimode Cable

Short Description:

The SC Fiber Optic patch cord is made by 2.0mm or 3.0mm PVC sheath simplex or duplex indoor cable and then is completed with SC. ST. FC or LC connectors.

It provides a stable and reliable connection both SM or MM and single or dual fiber. PC, UPC and APC is optional.

Features

Low insertion loss. High return loss.
High stability and reliability.
Low insertion loss and high return loss
Excellent end face geometry parameter
Special specification available upon cutomer's requirements

Applications

Data transmission Networks Image transmission Networks
CATV Optical test instrument Photoelectric automatic control system

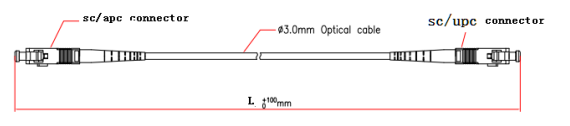

Product Sketch Map

Figure 1: SC/APC-SC/UPC-SM-SX
Remarks:1.L”stands for the order length;

Main Material Specification

Project	Specifications	Remarks
Fiber Type	G657,G652	Accord with ROHS and IEC Standard
Cable Diameter	3.0mm
Cable Material	PVC or LSZH
Cable Color	Yellow
Connector Type	SC/APC&SC/UPC
Insert	2.499±0.002mm
Concentricity	less than 0.5um

Optical Performance

Item	Unit	Index	Remarks
Out of roundness	/	less than10%
Bend radius	mm	≥30
Attenuation value	dB/km	less than 0.36(1
