    ST / UPC Single Mode Fiber Optic Patch Cord High Durability Long Delivery Length

    Ask Lasest Price
    Brand Name : SINOHONE
    Model Number : ST Fiber Optic Pigtail
    Certification : RoHS ISO9001 CPR FCC CE
    Price : USD $0.38~$0.58 / meter
    Payment Terms : L/C, D/P, T/T, D/A, Western Union, MoneyGram
    Supply Ability : 500000 meters per month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    ST / UPC Single Mode Fiber Optic Patch Cord High Durability Long Delivery Length


    ST / UPC Single Mode Fiber Optic Pigtails To Fiber Optic Patch Cord Cables


    Description:

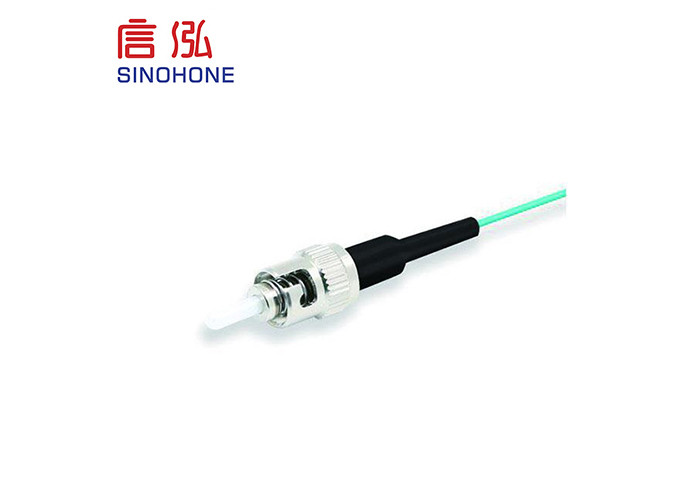

    ST pigtail connector is the most popular connector for multimode fiber optic LAN applications. It has a long 2.5mm diameter ferrule made of ceramic (zirconia), stainless alloy or plastic. Hence SC fiber pigtails are commonly seen in telecommunications, industry, medical and sensor fields.

    Like fiber optic patch cords, fiber optic pigtails can be divided into UPC and APC versions. Most commonly used types are SC/APC pigtail, FC/APC pigtail and MU/UPC pigtail.


    Features:

    • Superior qualified standard PC, APC, UPC, SPC polishing;
    • 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);
    • 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);
    • φ0.9mm, φ2.0mm, φ3.0mm cable optional;
    • Single mode (9/125) or multi mode (50/125 or 62.5/125) fiber available;
    • FC, SC, LC, MU, ST, MT-RJ, etc connector options
    • Simplex and duplex connector available; 8) Good exchange ability and good durability;
    • Available in fiber bunch, ribbon fan-out, pigtail available;
    • Meets ISO9001, ROHS and Bell core GR 326-core standards;
    • Customized specifications are welcomed.



    Applications:

    1. CATV, metro test equipment;
    2. Local area networks (LAN);
    3. Wide area networks (WAN);
    4. Premise installation;
    5. Telecommunication networks;
    6. Data processing networks;
    7. Video and military active device termination


    ItemST Fiber Optic Pigtail
    FOB PriceUS $0.38- 0.58 / meter
    Min.Order Quantity2000 meters
    Supply Ability500000 meters per Month
    PortShanghai, Shenzhen, Qingdao, Ningbo etc.
    Payment TermsT/T, L/C, D/A, D/P, Paypal, Western Union, MoneyGram etc.
