    Aerial ADSS Hybrid Fiber Power Cable , Self Supporting Fiber Optic Cable

    Ask Lasest Price
    Brand Name : SINOHONE
    Model Number : ADSS Aerial Optical Fiber Cable
    Certification : ISO9001 CPR FCC CE RoHS
    Price : USD $0.38~$0.58 / meter
    Payment Terms : L/C, D/P, T/T, D/A, Western Union, MoneyGram
    Supply Ability : 500000 meters per month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

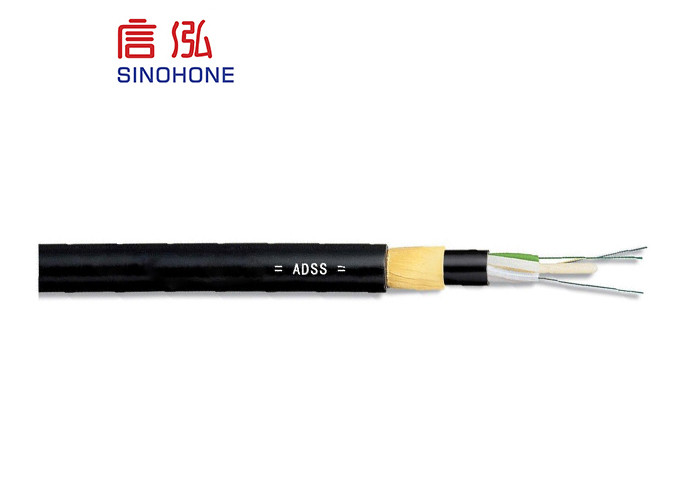

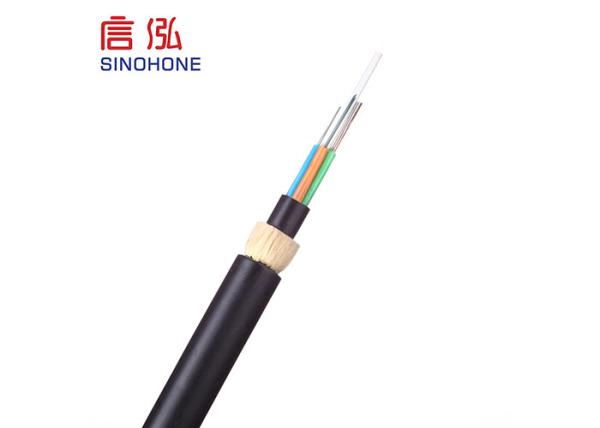

    Aerial ADSS Hybrid Fiber Power Cable , Self Supporting Fiber Optic Cable


    All Dielectric Self-Supporting Aerial Optical Fiber ADSS Cable Hybrid Fiber Power Cable


    Features of ADSS fiber optic cable:


    1. It can be erected without powering off;
    2. AT sheath, excellent electric tracking resistance;
    3. Light weight, small cable diameter, reducing the influence of wind and ice, on the tower and support load, large span, the largest span 200 meters;
    4. With excellent tensile properties and temperature characteristics, life expectancy is greater than 30 years.


    Advantages of GL ADSS Optical Fiber Cable:


    1. Good aramid yarn have excellent tensile performance;
    2. Fast delivery,200km ADSS cable regular production time about 10 days;
    3. Can using glass yarn instead of aramid,to prevent mouse bite.

    ADSS Cable Construction ParameterADSS Optical Fiber Parameter
    No. of fibers4-72fibersFiiber TypeG652D
    FRP Strength Member Diameter2.1 mmMode Field Diameter8.6~9.5±0.7μm
    Loose Tube Diameter2.0 mmCladding Diameter125 ± 1μm
    Out Sheath Diameter1.8 mmCladding Non-Circularity:≤ 1%
    Loose Tube MaterialPBTCoating Diameter245 ± 10μm
    Filling compound (Tube)Thixotropic JellyAttenuation Coefficient≤ 0.36dB/km at 1310nm, ≤ 0.22dB/km at 1550nm
    Water BlockingWater Swell able MaterialChromatic Dispersion≤3.5ps/nm/km at 1285~1330nm, ≤18ps/nm/km at 1550nm
    Outer sheath materialAnti-tracking for 35-110kv voltageZero Dispersion Wavelength1300~1322nm

    Aerial ADSS Hybrid Fiber Power Cable , Self Supporting Fiber Optic CableAerial ADSS Hybrid Fiber Power Cable , Self Supporting Fiber Optic Cable
