Direct Buried Loose Tube Fiber Cable Customized Length Stretch Proof

Ask Lasest Price
Brand Name :	SINOHONE
Model Number :	GYTA53
Certification :	CPR FCC CE RoHS ISO9001
Price :	USD $0.38~$0.58 / meter
Payment Terms :	L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :	500000 meters per month
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

Direct Buried Loose Tube Fiber Cable Customized Length Stretch Proof

Direct Buried Installation Steel Tape Armored Fiber Optic Cable Layer Stranded

Quick Description:

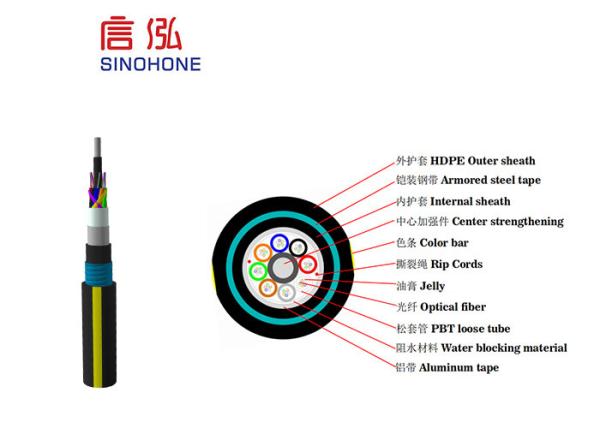

Sinohone GYTA53 fiber optic cable has structure with aluminium tape against moisture, corrugated steel tape as armor, PBT loose tupe stranding and double sheaths. The loose tube material has good hydrolysis resistance performance and high stength. It also has compact structure and excellent water blocking performance, strict manufacturing processes, good mechanical performance and environmental properties.

Features:

Loose tube stranding
Metal strength member
Flooding jelly compound
Aluminum-polyethylene adhesive sheath
Steel-polyethylene adhesive outer sheath

Applications:

Buried, cable trench, etc.
Relay communication system
Core network, metropolitan area network and access network etc.

Standards:

YD/T901-2009
IEC60794-1

Temperature:

Operating temperature: -40°C~+70°C

Technical Parameters:

Fiber Count	Structure	Diameter(mm)	Weight (kg/km)	Tensile(N)		Crush(N)		Bending Radius(mm)
				Tensile(N)		Crush(N)		Bending Radius(mm)
				Long term	Short term	Long term	Short term	Static	Dynamic
4-36	1+6	12.8	89	1000	3000	1000	3000	12.5D	25D
38-72	1+6	13.6	104	1000	3000	1000	3000	12.5D	25D
74-84	1+7	14.7	99	1000	3000	1000	3000	12.5D	25D
86-96	1+8	15.4	148	1000	3000	1000	3000	12.5D	25D
98-108	1+9	16	162	1000	3000	1000	3000	12.5D	25D
110-120	1+10	16.6	174	1000	3000	1000	3000	12.5D	25D
122-132	1+11	17.2	187	1000	3000	1000	3000	12.5D	25D
134-144	1+12	17.9	204	1000	3000	1000	3000	12.5D	25D
146-216	1+6+12	18	212	1000	3000	1000	3000	12.5D	25D
218-288	1+9+15	20.5	254	1000	3000	1000	3000	12.5D	25D
